TERSUS GNSS PRODUCTS
Desert Creative Group (DCG) is the authorized Master Distributor for the U.S. & Canada.
ABOUT TERSUS GNSS
Founded in 2014, Tersus GNSS has been at the forefront of creating affordable, high-quality, centimeter-accurate positioning technologies for various applications such as UAVs, surveying, mapping, GIS, precision agriculture, construction, engineering, deformation monitoring, autonomous vehicles, and more.
Tersus is a pioneer in designing and manufacturing its own GNSS chips, Nuwa field software, and Inertial Navigation Systems (INS), continuously driving innovation in the industry. The diverse Tersus portfolio listed below is available from DCG and its authorized U.S. and Canadian partners.
TERSUS SMART RECEIVERS
Cutting Edge Features, High Quality Manufacturing, All at a Fraction of the Cost
All Tersus Smart GNSS receivers listed below are affordable, fully featured, and easy to operate for any surveyor or RTK GNSS user.
Common features between models:
- IMU Tilt Compensation – unlimited Tilt compensation without calibration and immune to magnetic disturbances (except David30 receiver). Tested RMS error of 3.7cm at a tilt angle of 110°.
- Versitile – receivers can be used as a rover or a base station. Supports 410-470MHz UHF radio, 4G network, Wi-Fi, Bluetooth, NFC.
- Full Satellite Tracking – the Tersus-developed GNSS board supports full, multi-constellation tracking, 576 – 1792 channels, 2 – 4 cm accuracy.
- Fix in Seconds – fixed solutions can be obtained in 3 – 5 seconds in open sky, and in 10 – 30 seconds under canopy or near buildings.
- Multipath Mitigation – advanced GNSS high-precision RTK algorithms enable Tersus smart receivers not only to track more satellites, but also to effectively filter out signals with serious multipath error and low signal-to-noise ratios. Results delivered even in urban canyons and dense tree canopy.
- Simple Workflow – capture, edit, and save data easily, reducing time spent on fieldwork and data processing. Tersus Nuwa Android App is a free download for use with the Tersus controllers or your own compatible Android device.
- Tersus Advanced Positioning (TAP) – most Tersus receivers are compatible with TAP, subscription providing real-time, centimeter-level correction via satellite link, anywhere and anytime.
OSCAR TREK GNSS RECEIVER
For Visual Surveying

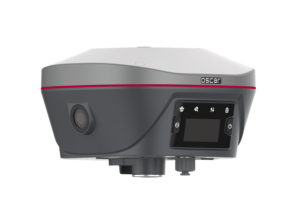

The Tersus premier RTK smart GNSS receiver combines a high-definition camera, IMU tilt compensation, and GNSS for seamless, non-contact measurements. It processes images in real-time to instantly provide precise coordinates, streamlining project completion. It is compatible with leading 3D modeling software and utilizes raw data for accurate, flexible post-processing in creating detailed 3D models.
Download Oscar Trek Brochure
Download Oscar Data Sheet
See the Oscar Trek in Action

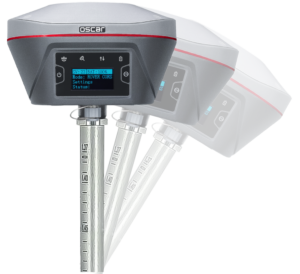

OSCAR ULTIMATE GNSS RECEIVER
Without Integrated Camera
Equipped with an advanced multi-constellation and multi-frequency GNSS board, the Oscar Ultimate GNSS receiver ensures exceptional accuracy and consistent signal detection. Note that it lacks the integrated high-definition camera for visual surveying that’s included in Oscar Trek.

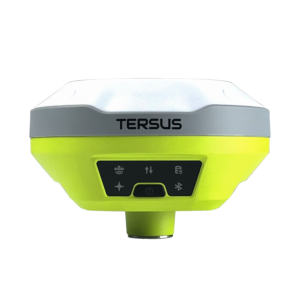

LUKA GNSS RECEIVER
Ultra-Compact
LUKA is a palm-sized, full-featured IMU-GNSS receiver and meets the demand of centimeter precision positioning in challenging environments.
Download LUKA Ultimate Data Sheet
See the LUKA Ultimate in Action

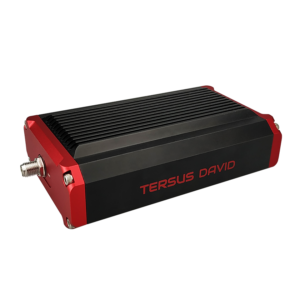

DAVID30 GNSS RECEIVER
The David30 receiver sensor offers exceptional versatility, making it a perfect GNSS solution for numerous specialized applications. It seamlessly integrates with Tersus GeoCaster for NTRIP corrections and serves as a dedicated base station. Additionally, it excels as a GNSS sensor for mobile mapping, machine control, precision agriculture, and UAV systems applications needing real-time corrections.

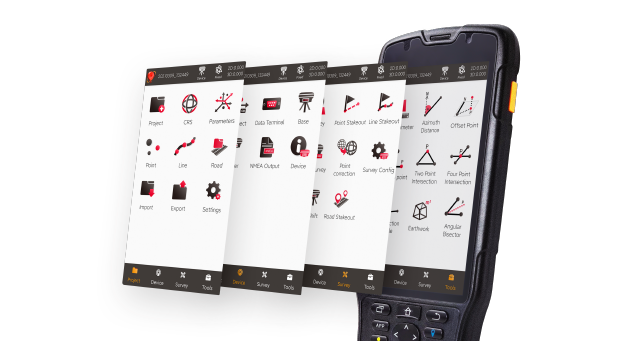

TERSUS NUWA APP
Nuwa is a field survey app designed for Tersus controllers or other Android devices (compatible with versions 6, 7 and later) that works seamlessly with Tersus Smart GNSS receivers. It features a graphical interface with a background map for CAD stakeout, road stakeout, Earthwork, tilt survey, and COGO tools for area perimeter, azimuth distance, and grid to ground calculations.

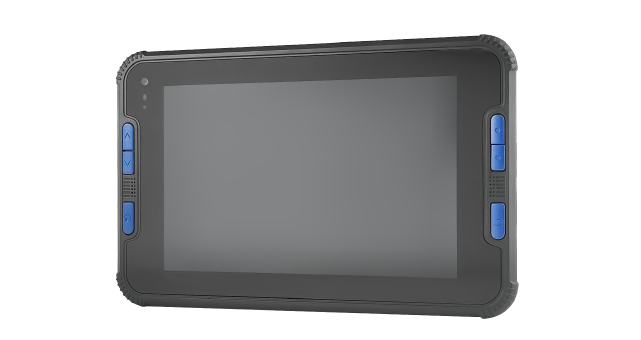

TERSUS CONTROLLERS

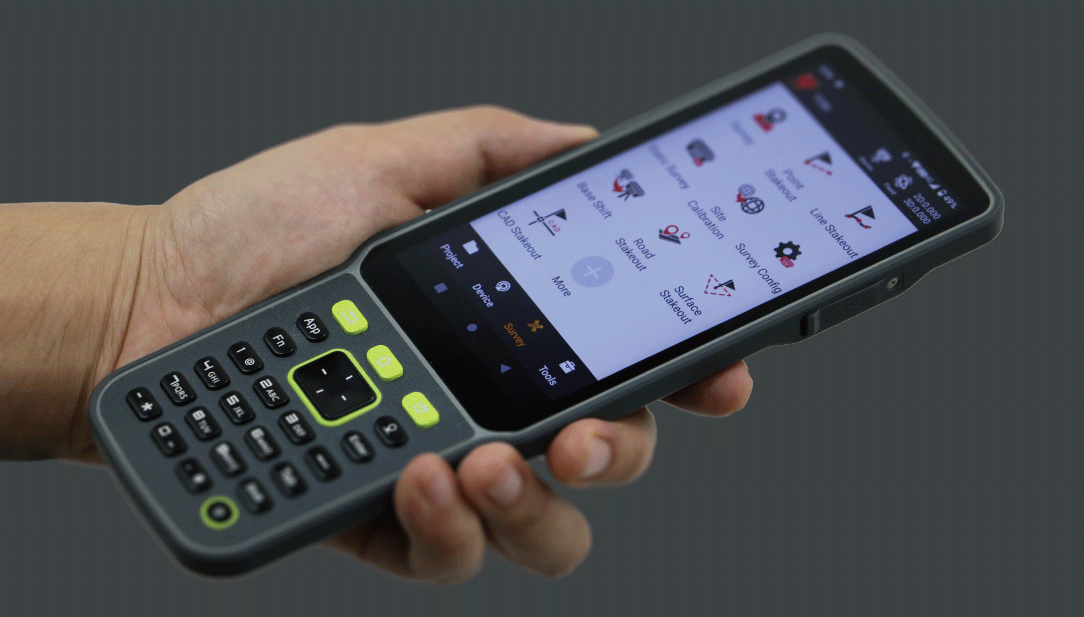

Opt for the robust TC80 5.5-inch data controller or the 8-inch TC40 rugged tablet controller as the core of your field data collection system. The TC80 is an ultra-lightweight, ergonomic handheld device designed for one-handed use. Meanwhile, the TC40, with its rugged Android tablet design, features a larger, high-resolution screen and offers cell phone capabilities.
Real-Time Corrections
Tersus provides multiple GNSS real-time correction options to suit diverse application requirements. Reach out to us for a personalized recommendation.
TERSUS ADVANCED POSITION (TAP)
Real-Time Network
TAP delivers global Precise Point Positioning (PPP) with accuracy of 1.5 cm horizontally and 3 cm vertically. Works seamlessly with Tersus smart GNSS receivers. Available in one, two, and three-year subscription plans.

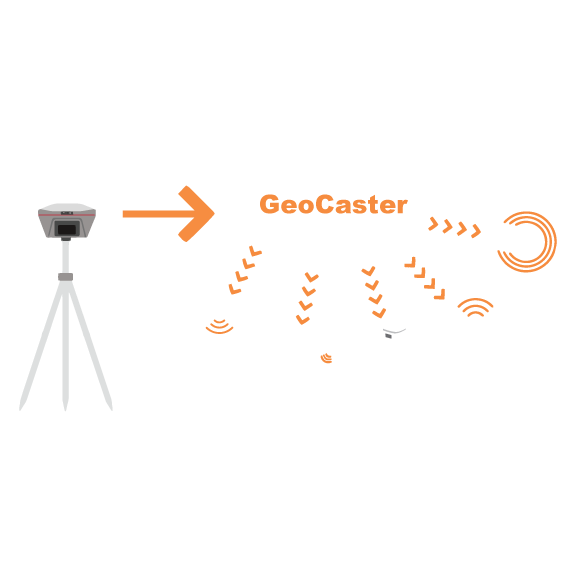

TERSUS GEOCASTER SOFTWARE
With TP688 NTRIP Modem
The Tersus GeoCaster is a software application that uses Networked Transport of RTCM via Internet Protocol (NTRIP) to distribute GNSS correction data, such as RTCM corrections, over the internet. Pair the GeoCaster with the TP688 NTRIP modem for use with any brand of rovers or bases. It provides real-time corrections to multiple devices for various applications including, UAV, surveying, construction, and high precision GIS.
TERSUS GEOBEE30
RTK Base Station Kit

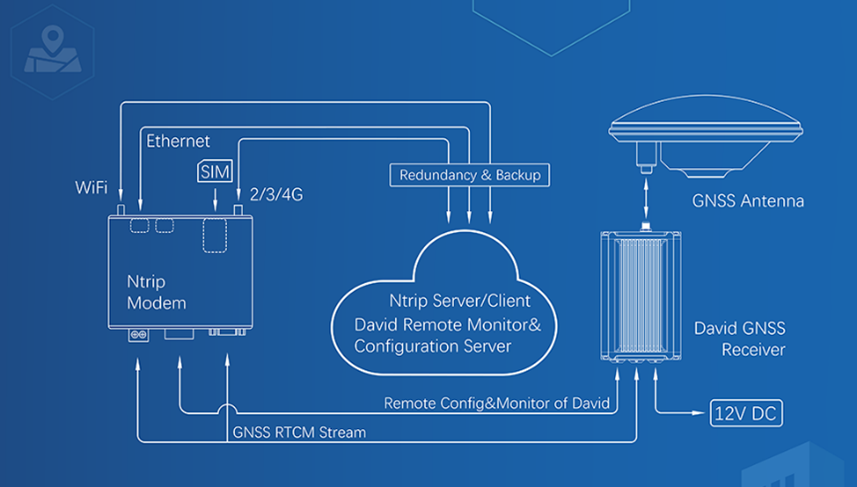

The Tersus GeoBee30 is an affordable permanent reference station, for transmitting or receiving NTRIP corrections. When combined with Tersus NTRIP Caster Service, NTRIP Modem, and David30 GNSS Receiver, the GeoBee30 enables users to easily send Real Time Kinematic (RTK) corrections via Ethernet, 2G/3G/4G connections using just a SIM card, or Ethernet cable, without requiring a static IP. The NTRIP caster service supports multiple bases simultaneously.
TERSUS MVP S2
Handheld or Backpack SLAM Scanning

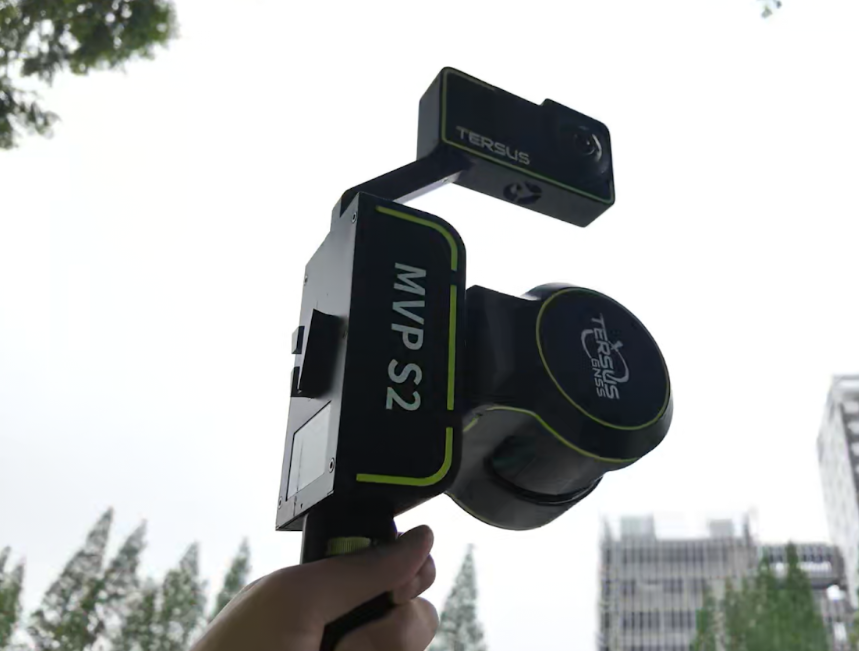

The Tersus MVP S2 is a professional-grade mobile 3D SLAM scanner that delivers sub-3 cm absolute accuracy using advanced RTK-SLAM technology. Whether handheld or worn as a backpack, it captures repeatable, high-resolution point clouds in real time, even in GNSS-denied environments.
The system includes a high-precision LiDAR, panoramic camera with a 1-inch Sony sensor and Leica lens, dual hot-swappable batteries (up to 3 hours of uninterrupted data collection per set), and full processing software.
Real-time 3D point cloud visualization in the field with Tersus MVP Capture ensures complete coverage and eliminates the guessing game of what was captured. The optional RTK integration seamlessly bridges indoor and outdoor environments and localizes data for direct use in CAD and GIS with real-world coordinates, eliminating those post-alignment headaches.

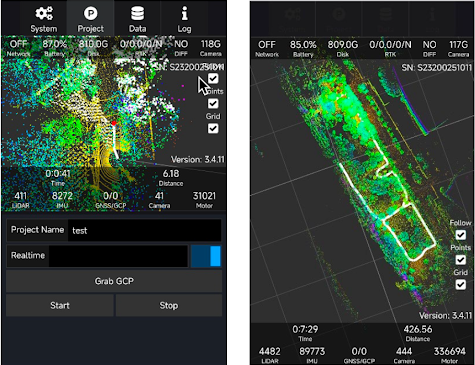

MVP Capture
Real-time 3D point cloud visualization in the field with Tersus MVP Capture ensures complete coverage and eliminates the guessing game of what was captured. The optional RTK integration seamlessly bridges indoor and outdoor environments and localizes data for direct use in CAD and GIS with real-world coordinates, eliminating those post-alignment headaches.
MVP Mapper

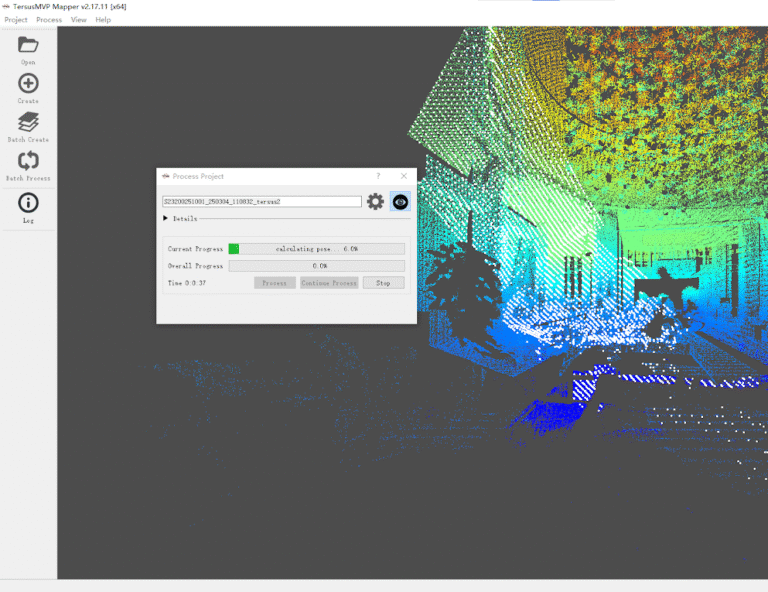

The Tersus MVP Mapper software provides automatic data processing (with and without ground control points), has Intelligent moving object filtering that removes distractions for a sharper, cleaner point cloud. Best of all, no subscriptions and full ownership of your data!
MVP Viewer

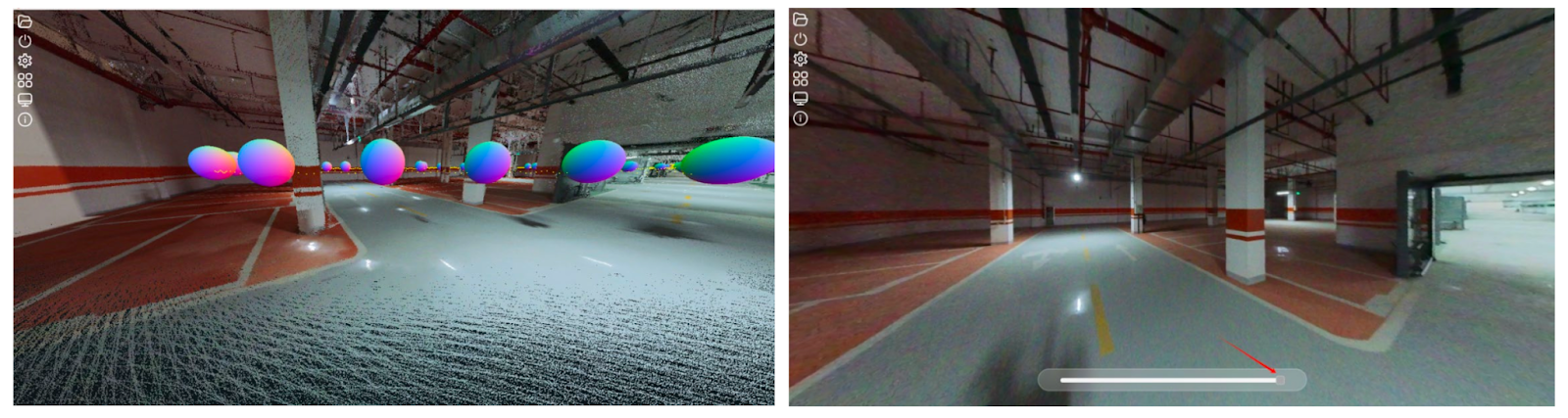

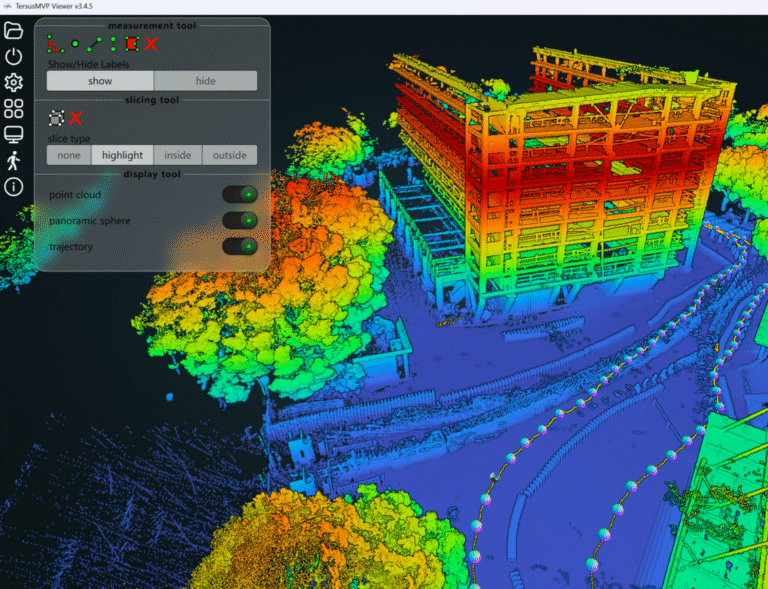

The Tersus MVP Viewer supports an interactive viewer of real images and point clouds. Measure and compute points, lines, areas, and clipping of data. It also offers a flexible roaming view of the scan data, following the trajectory of the scan, to view images and point cloud data.
The Power of the MVP S2
The efficiency and repeatability make it ideal for terrain mapping, infrastructure surveys, floodplain and forestry analysis, BIM modeling, and emergency response applications.
THEDUCK
Bathymetric Surveying
TheDuck™ is an autonomous surface vessel designed for bathymetric surveys of aquatic environments like rivers, lakes, reservoirs, and coastal areas. It features an optional single-beam echo sounder and offers remote-controlled real-time display capabilities, allowing for control from over a mile away. Enhance capabilities by equipping it with a Tersus smart GNSS receiver and Tersus Precision Point Positioning service (TAP), ensuring high-performance navigation even in areas without network coverage.
BECOME A PARTNER
Desert Creative Group (DCG) is proud to be the authorized Master Distributor for Tersus GNSS across the United States and Canada. We’re seeking subdealers, sales affiliates, and technology partners to help bring Tersus products to market.
With a comprehensive portfolio that rivals leading solutions, Tersus enables our partners the ability to approach a wide variety of geospatial users. Recognizing the importance of strong customer relationships, we’re dedicated to supporting your growth as a leading Tersus GNSS supplier in your region or market space.
Don’t miss your chance to join our innovative distribution network, offering the next generation of high-accuracy, affordable data collection solutions in the U.S. and Canada. Need a hand to get started? Don’t worry! DCG is here to provide comprehensive business development and marketing agency services, ensuring you achieve success quickly. Contact us at [email protected] or 1-208-423-7422 to learn more.
